Pedigrid® G8

Stop dirt at the door with our durable Pedigrid® SA (G8) entrance grid.

  • Ideal for high-traffic areas, these serrated aluminum architectural grids enhance traction and scrape shoes to trap and remove large amounts of dirt, mud and other debris.

  • This eco-friendly and functional solution is a cost-effective alternative to stainless steel grids.

  • Choose from six different tread options: Serrated aluminum, Carpet, Recycled rubber, Poured abrasive, Abrasive tape, Black rubber.

  • Heavy-duty carpet available in 22 colorways.

  • Ledge frame supports grid within recess.

  • EDPM cushions level product and reduce noise.

  • Key lock bar for strength and rigidity.

THE PEDIGRID PERFORMANCE RATING

  • 0.70

  • 400 lb

  • Carpet or abrasive inserts most effective

  • High capacity

  • Carpet inserts most effective

  • Yes

  • Yes

THE PEDIGRID  BENEFIT

DEPTH

Pedigrid (G1) is available in a variety of frame options, with or without drain pans, up to 4-1/4" deep.

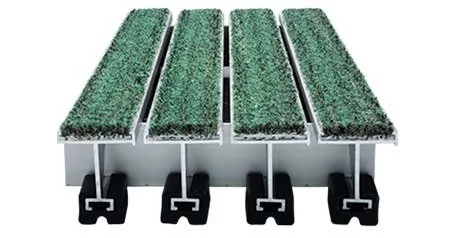

INSTALLATION

Pedigrid can be installed in either a level base or deep pit application. This depth provides unparalleled dirt trapping capabilities to keep your entrance clean and safe.

PEDIGRID FRAMES/MOUNTING OPTIONS

RECESSED LEVEL BASE WITH OR WITHOUT DRAIN PAN

RECESSED DEEP PIT WITH OR WITHOUT DRAIN PAN

Stop dirt at the door with durable Pedigrid. Ideal for high-traffic areas, these aluminum recessed grids with scraping capabilities enhance traction and scrape shoes to trap large amounts of dirt, mud, slush, and snow. With many aesthetic choices, Pedigrid looks as good as it performs. This eco-friendly and functional scraper matting system is perfect for new construction or existing recesses.

FEATURES

Aluminum tread rails

Aluminum key lock bar

For new construction or existing recesses

Available with or without drain pans

APPLICATIONS

Vestibules

Interior & exterior entries

WARRANTY

Two-Year Limited Warranty

BENEFITS

Completely customizable

Pedigrid’s sizeable depth is perfect for trapping large amounts of snow and debris

Easy to clean

PRODUCT DETAILS

1 11/16" (42.9mm) grid depth

3.14 lbs/sq ft product weight

1 1/2" (38.1mm) O.C. tread spacing

1" (25.4mm) EPDM cushion

400 lbs/wheel rolling load capacity

All aluminum tread surface model available Pedigrid SA G8

BUILDING SEGMENTS

Aviation & Transportation

Education

Healthcare

Office & Mixed Use

Retail & Hospitality

Senior Living

Sports & Entertainment

CERTIFICATIONS

Static Coefficient of Friction Test

Pedigrid ASTM E-648 Test

CDPH Standard Method v1.1 VOC Emission Testing

Cradle-to-Cradle CertifiedTM Silver

INSERTS & RAIL FINISHES


Exterior Brush Tread

Rugged polypropylene fibers handle exterior elements. Available in four colors* as denoted.


MonoTuft HD™

Our unique fiber combination including monofilament fibers offers the most aggressive interior carpet insert available. Offered in 21 colors.

Carpet Tread Inserts

* Available in Exterior Brush Tread
† Man made cocoa fibers only available for exterior applications.

Abrasive Tape Inserts

Poured Abrasive Inserts

Rubber & Aluminum Inserts

Rail & Frame Finishes

Due to the differences between monitors, the colors above may vary when specifying. Request color samples. McCrann custom Flooring reserves the right to make design changes or to withdraw any design without notice.
