BaseGrid GB-700

The BaseGrid GB-700 offers sound footing while helping keep the building safe and clean.

  • The BaseGrid GB-700 series features a rigid 1-3/4" I-beam all aluminum design. The aluminum cross member gridlock keep rails in place, while vinyl footers help to cushion both foot and cart traffic.

Product Details

  • Materials: Corrosion-Resistant 6063-T5 aluminum with numerous insert options

  • Weight Load Capacity: 400 lbs. per wheel

  • Thickness: 1-3/4"

  • Depth: Mat and frame(L-7B or "T" frame): 2"

  • Frame Options: Recess only

  • LEED: based on NCv4
    - v4 MR p2
    - v4 MR c1
    - v4 MR c3
    - v4 EQ c1

  • Recycled Content: 49% per-consumer

  • Additional Specs: 6063-T5  aluminum spaced 1-1/2" on center and connected with gridlock welded rails

  • Custom alternation patterns are available for all inserts

Product Downloads

Insert Types & Colors

GB-700 MonoScrape Carpet

GB-701 Vinyl

GB-702 Polybrush

GB-704 Vinyl Abrasive

GB-705 Serrated Aluminum

Metal Finish Options

Mill finish is standard. Anodized color palette shown. Custom anodized and powder coated finishes available upon request.

Product Frames & Drawings

Recessed Level Bed L-7B

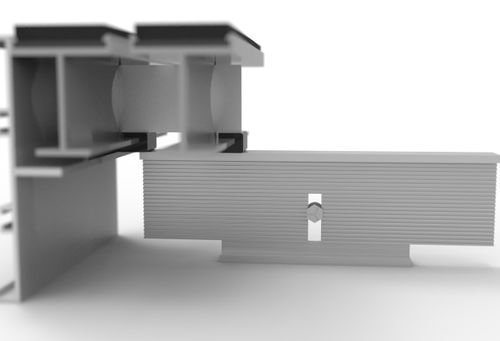

Adjustable Cross Support CS-7

Recessed Angle L-7T

Cast-in-place C-7

Deep Pit DP-7

Product Detail Drawings
